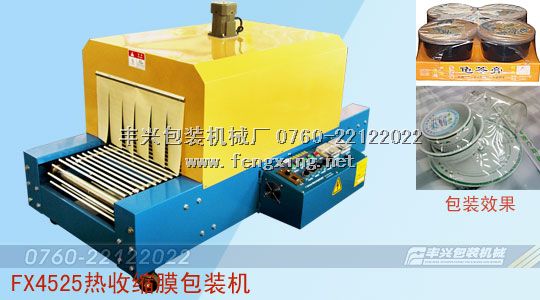

Model: FX4525
Type:Skrink warpping machine
Order Hotline:0760-22122022FX4525 thermal shrink packaging machine paper box shrink machine paper box sealing machine shrink film packaging machine ceiling light shrink machine energy-saving lamp shrink machine shower gel shrink packaging machine hand washing liquid thermal shrink packaging machine

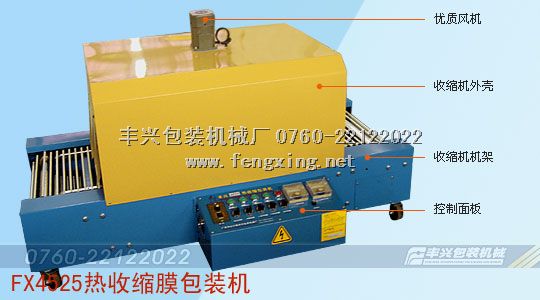

The machine inlet size width 450MM, height 250MM, design for the open cover type models, can open the contraction room on the cover, maintenance is very convenient. For product width and height dimensions at least less than the inlet size 50mm (around the sides and top, if too close to the size of the products around the sides and top, prone to scratch, grilled bifida shrink film phenomenon).
After packing the goods to sealed, moisture-proof, anti pollution, and protect the goods from the impact from the outside, has some of the buffer, especially when using glass packaging, can prevent the scattering when the container is broken, so the one set of packaging items Guojin;

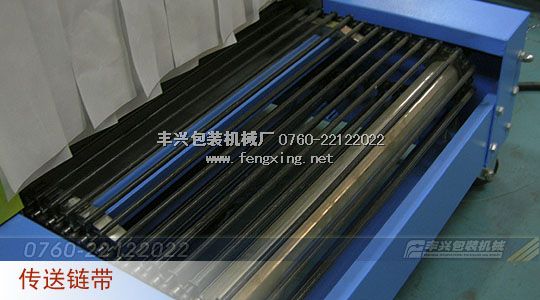

The expanded usage is can be used as a drying machine, usually adopts the stainless steel mesh belt conveyor, used for electroplating drying, preserved fruit drying, glue glue, drying and so on.
Commodity after heat shrink packaging and improve the sales, increase the sense of beauty and value; heat shrinkable packaging is widely used in light industry, food and beverage, candy, cultural activities, arts and crafts, printed matter, pharmaceuticals, chemicals, hardware and electrical components, items of shrink packaging.
Remarks:
All heat shrink packaging machine models are set at the entrance width and height;
Model: 400 x 200 / 450 x 250 / 450 x 350 / 600 x 400
Power: KW 5/7/8/9
Power supply: 220V/50Hz

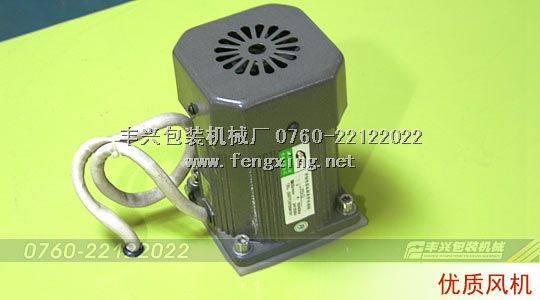

Fan: heat dissipation type
Temperature: room temperature -200 C (adjustable)
Applicable shrinkage film: PVC/POF
Weight: 50kg/ square meters
Conveying speed: m/min 0-10
Shrink room size: 800 x 400 x 200 x 900 x 450 x 250 x 900 x 450 x 350 x 1200 x 600 x 400
Size: 1200 x 780 x 750 x 1540 / 880 x x 900 x 880 x 1540 x 1000 x 1800 x 1020 x 1200 (reference size)
