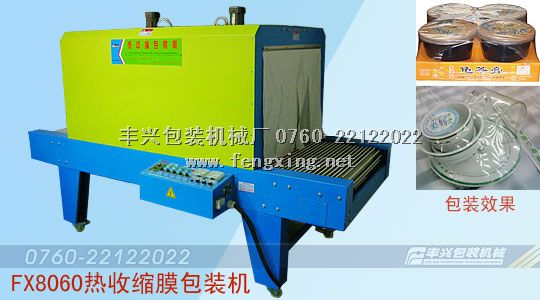

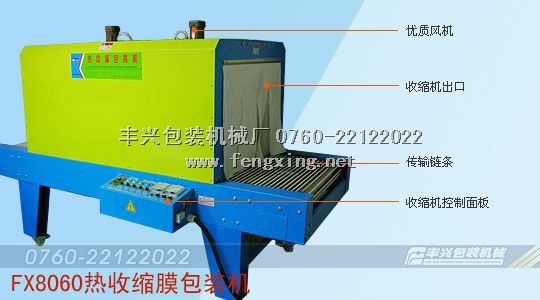

Model: FX8060
Type:Skrink warpping machine
Order Hotline:0760-22122022The height of the platform is about 730MM, the width of the entrance is 800MM, and the height is 600MM. For product width and height dimensions at least less than the inlet size 50mm (around the sides and top, if too close to the size of the products around the sides and top, prone to scratch, grilled bifida shrink film phenomenon).
After packing the goods to sealed, moisture-proof, anti pollution, and protect the goods from the impact from the outside, has some of the buffer, especially when using glass packaging, can prevent the scattering when the container is broken, so the one set of packaging items Guojin;
The expanded usage is can be used as a drying machine, usually adopts the stainless steel mesh belt conveyor, used for electroplating drying, preserved fruit drying, glue glue, drying and so on.
Commodity after heat shrink packaging and improve the sales, increase the sense of beauty and value; heat shrinkable packaging is widely used in light industry, food and beverage, candy, cultural activities, arts and crafts, printed matter, pharmaceuticals, chemicals, hardware and electrical components, items of shrink packaging.
Model: FX-8060
Power supply: three-phase five wire system 50Hz 220V
Conveyor motor: 120W
Power: 18 KW
Chamber temperature: room temperature -200

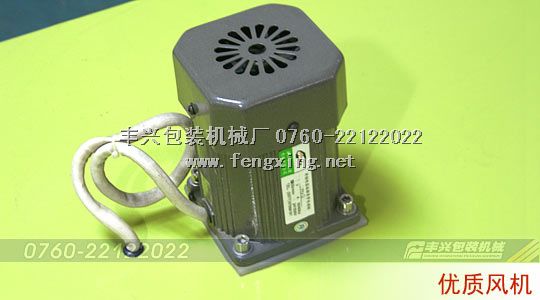

Fan: 2x60W
Shrink room size: 1200X800X600
Heating tube: 36 X500W/ branch

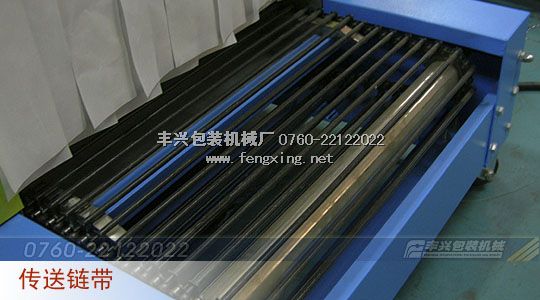

Conveyor speed: 0-10 M / min (adjustable)
Packaging film materials: PVC, POF, PP
Weight: 20kg/ square meters
Outline dimension: mm 2400X1020X1100
