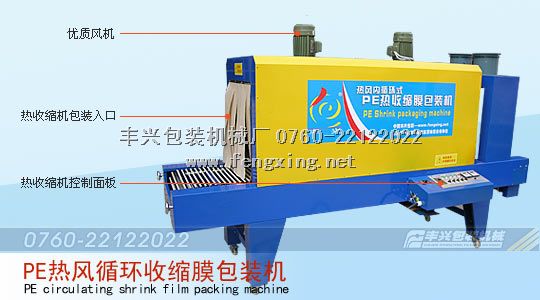

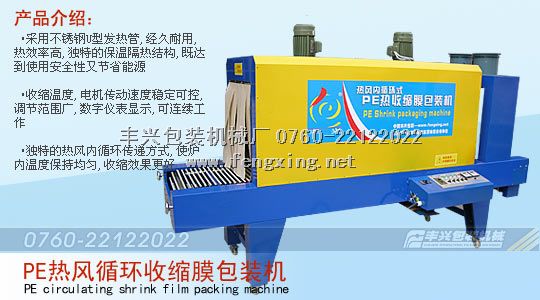

Model: FX-5040 PE
Type:Skrink warpping machine

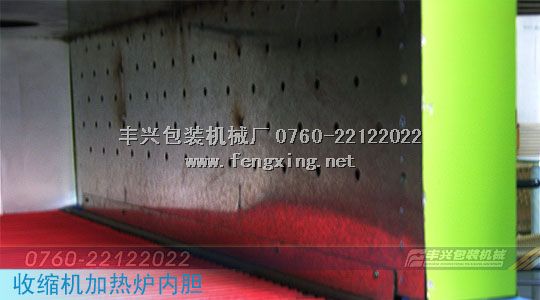

Order Hotline:0760-22122022FX5040 type hot air internal circulation shrink packaging machine, is currently at home and abroad the latest model of automatic continuous contraction of packaging equipment, the furnace cavity built-in stainless steel U-shaped heating pipe, durable, high thermal efficiency, unique thermal insulation structure, both to achieve safety and energy saving;
Shrinkage temperature, motor speed stability and control, wide adjustment range, digital instrument display, can work continuously.
The product has advanced design, stable performance, reasonable structure, simple operation and easy maintenance.
Unique hot air circulation transmission mode, so that the furnace temperature is kept uniform, the effect is better.
This product through the EU CE certification
Model: PE type FX-5040
Conveyor belt height of about 750mm
Power supply: three-phase five wire system 50Hz 220V
Power: 16KW
Conveyor motor: 120W gear reduction motor, electronic speed control
Fan: 370W, 380V three-phase motor
Cooling fan: 50W/220V AC motor
Heating tube: 500W type 240#U stainless steel heating pipe
Temperature: room temperature -250 degrees Celsius, adjustable 2 area
Shrink film materials: PE, PP, POF, PVC
Shrink film bearing: 30kg/ square meters
Conveying speed: 0-10 M / min
Shrink room size: width * height * length =500*400*1800mm
Outline dimension: 3050mm * 780mm * 1660mm
