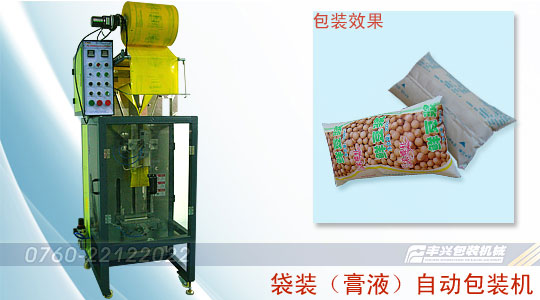

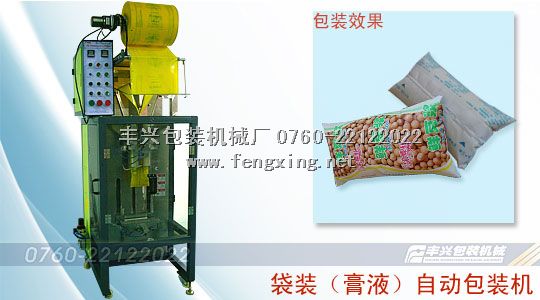

Model: FX-320 PE film liquid
Type:Automatic packing machine

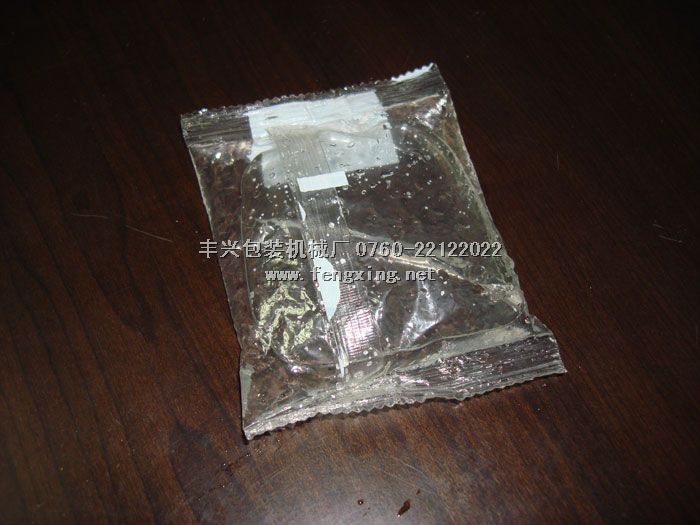

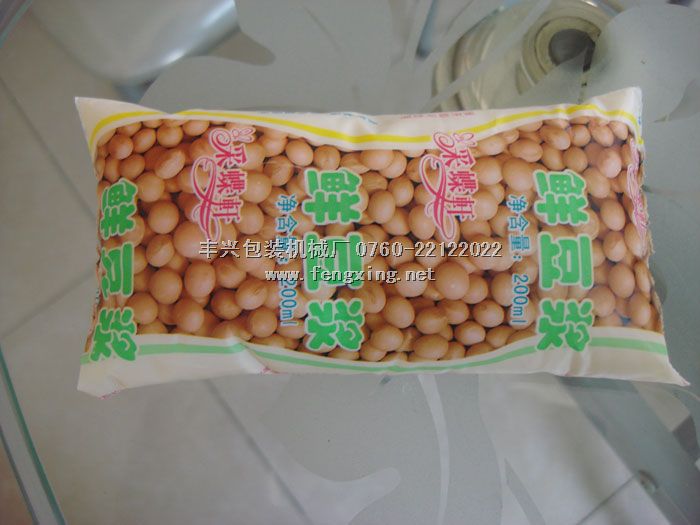

Order Hotline:0760-22122022PE type FX-320 film liquid automatic packaging machine can be packaged 850 ml. Suitable for bagged sauce, bagging vinegar, bagged the Buddha lamp oil, bagged butter, bagged rapeseed oil, bags of honey, bagged pesticide.
Direct use of PE to enhance film packaging, low cost, strong sealing, low packaging costs.
Using electric or pneumatic volumetric metering (piston pump).

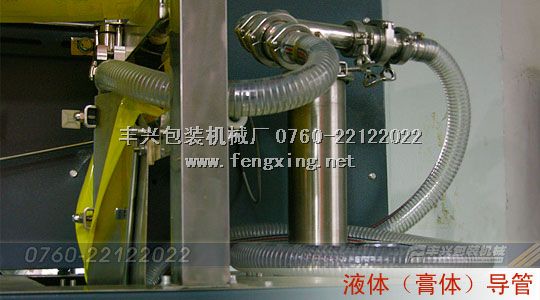

Material from the piston pump to draw, smoothly through the pipeline into the packaging bag, the machine automatically complete the horizontal sealing, longitudinal sealing.

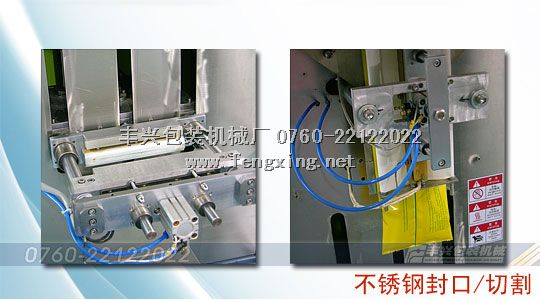

The machine automatically measuring, bag making, filling, filling), sealing, (code), thermal cutting, count to product output completed a one-time.
Machine type name: PE type FX-320 film back sealing liquid packaging machine
Power supply: 50Hz 220V
Packing speed: 10-40 bag / min (non standard type, in kind prevail)
Bag length: 50-280mm
Bag width: 60-145mm (optional forming device can change the bag width)
Metering capacity: 100-600ml, 500-850ml (optional)

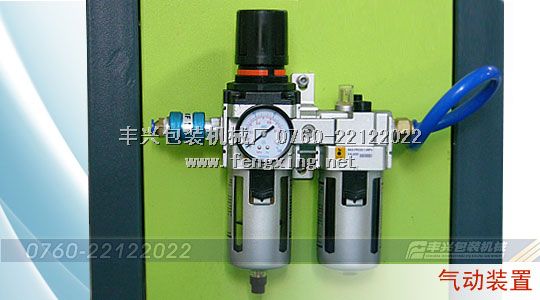

Air pressure 6-8kg/ square centimeter
Power consumption: 1.8kw
Weight of the whole machine: 220kg
