Model: FX-320 Screw type
Type:Automatic packing machine
Order Hotline:0760-22122022

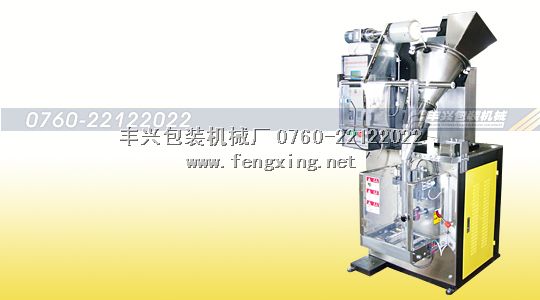

FX-320 type back seal powder automatic packaging machine, widely used in medicine, food, chemicals, pesticides, and pouch packaging, such as flour, powder, milk powder, nutrition food, condiment, wet pesticide powder material automatic packaging.

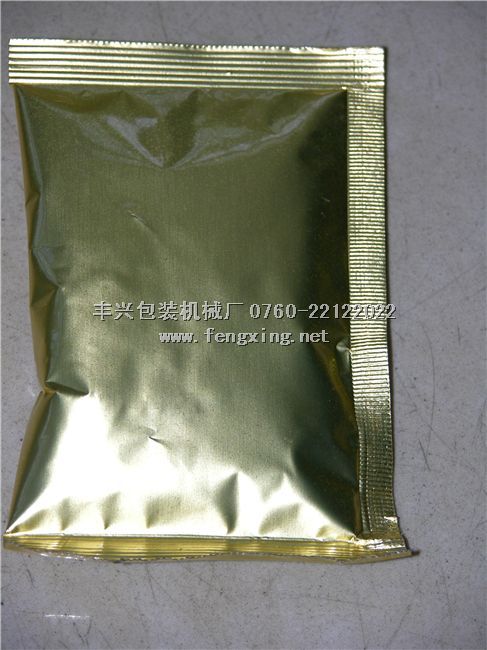

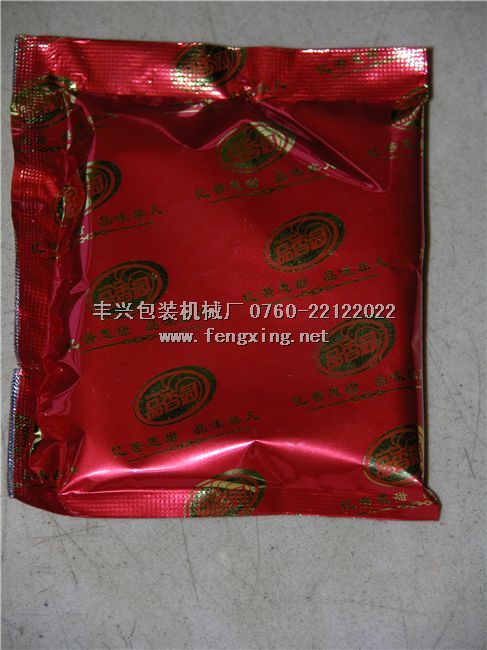

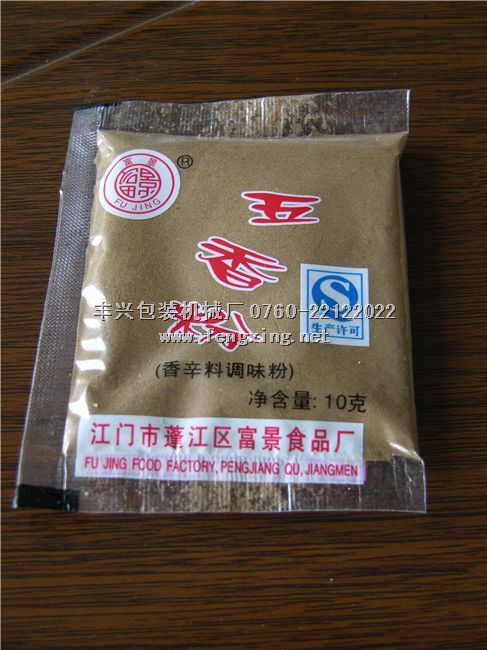

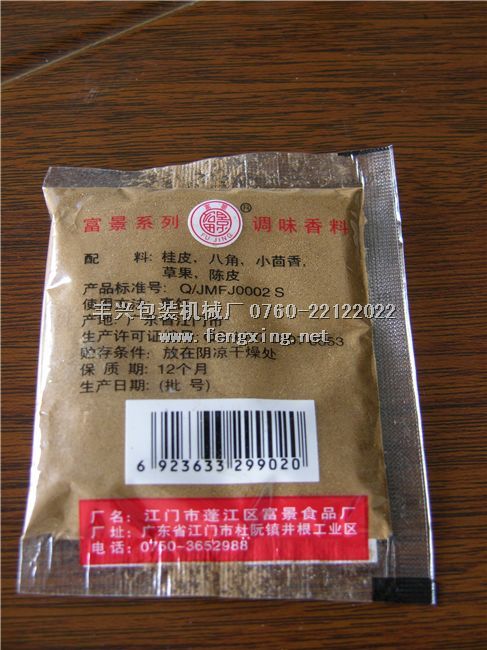

Screw type automatic powder packaging machine according to different packaging effect, respectively, back seal (I-shaped seal), three side seal (seal + 1 side side seal). Four sides sealing (upper and lower sealing + left and right sealing). This page describes the three side sealing models.

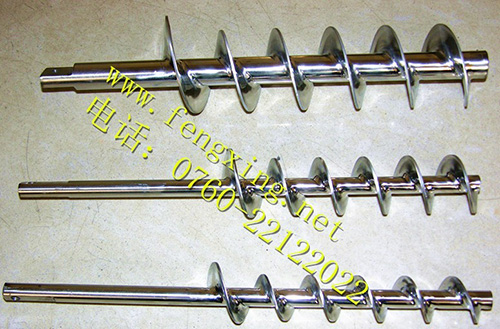

This machine is used to control the rotation angle of the stepper motor to control the screw extrusion volume (filling volume), can be replaced with different specifications of the screw, the realization of a certain range of precision adjustment of filling volume.
Packaging process, material barrel material not less than the cylinder position and measurement more accurate, low storage of materials will lead to screw is not feeding and extruding quantity filling quantity is not accurate).
If the machine can be matching an automatic feeding machine, that can achieve more automated packaging process, no need for artificial feeding, saving manpower.
Production date print function, optional a electric Ribbons Fight Code machine, by replacing the fight code machine to print prefix word grain, every day to play different numbers (batch number, production team); in order machine, other Chinese and English words grain optional.
Function: This machine, if all matching complete, it can be automatically completed quantitative, bag making, filling, sealing sealing effect in (optional crazing, and straight lines, etc.), (print production date), cutting (incision: zigzag incision, even bag easy tear etc.), count to product output once completed.
Model: FX-320
Packing form: three side sealing (side three side sealing)
Power supply: single phase 50HZ 220V
Power: 2.2kw
Metering method: screw type
Filling range: 3-15, 10-50, 50-100ml (through the matching screw to achieve)
Bag width: 30-145 (mm)
Bag length: 50-150 (mm)
Packing speed: 30-60 bag / min
Dimensions: 700 x 920 x 1580 (mm)
Outer packing size: 860 * 1030 * 1700 (mm)
