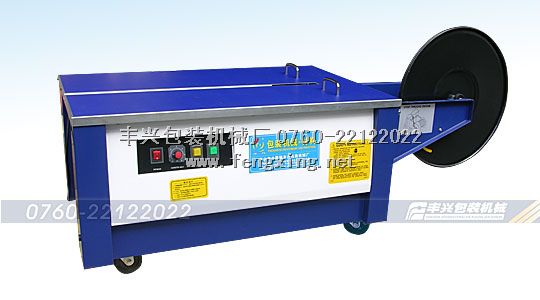

Model: Low circuit board
Type:Strapping Packing Machine
Order Hotline:0760-22122022The joint is short, no metal button, in compliance with international environmental requirements;
Packing speed, high efficiency, each beat a PP with only 1.5 seconds;
Quick heating system, 1V low voltage, good safety, instant heating, boot 5 seconds after entering the best packaged state;
Automatic stop device, power saving and practical. More than 60 seconds no longer operate, the motor will automatically shut down, enter the standby state;

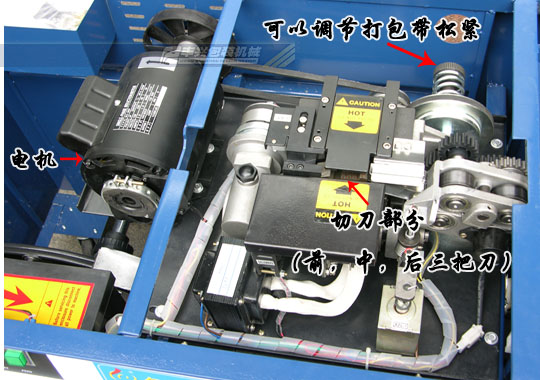

Electromagnetic clutch, quick and smooth, shaft type transmission, high speed, low noise, little abrasion, low failure rate;
A new circuit design, the insertion of integrated circuit board to control the whole packing action and perm temperature and to separate the part of the circuit, circuit board inspection and maintenance convenient.
Design of a new type of electric steel sheet, long life, fever quickly, from ordinary perm easy variant and short circuit faults;
Packing belt with 6-15mm width can be used to ensure the integrity and consistency of the adhesive effect;
With a quick adjustment knob, the size of the binding force can be arbitrarily adjusted quite convenient.
The strapping machine products faster, tied a belt is just about 1.5 seconds, reducing the labor intensity of workers, improves the work efficiency, large binding force and wide adjustment range, stable and reliable quality, convenient operation and maintenance; hot knife rapid heating, 5 seconds into the best state of packing, after the completion of the bale, such as 1 minute does not work motor automatic stop enter the standby state.
Model: low platform
Package weight: less than 100kg
Power supply: 50Hz 220V
Power: 280W
Bundling belt width: 6 ~ 15mm
Minimum packing: 60mm*30 mm
The maximum packing material: no limit
Packing speed: 1.5 seconds / Channel
Maximum binding force: 60KG
Outline dimension: 1490mm*565mm*460mm
Remarks:
This machine is the cover plate of galvanized plate;
Ordinary type electric motor with contact;
Movement parts quality is qualified.
