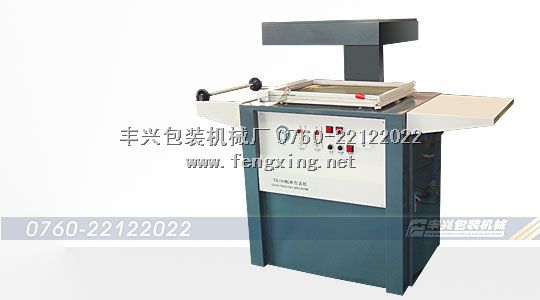

Model: TB390
Type:Skin Packaging Machine
Order Hotline:0760-22122022Packaging machine body, the product is placed in cardboard or bubble cloth, body fitted film is heated in vacuum close to the products, and with the bottom sealing packaging machine.
TB390 packaging machine body, also known as FX-3954 type packaging machine body, the surface area of work for length 540MM, width 390MM, using body fitted film for 450mm.
Packaging for any products without mould. Enable goods to extend the shelf life, stereo view is strong, is not easy to loose packets can be widely used in hardware tools, auto parts, medical equipment, electrical and electronic components, toys, stationery, tableware knives, and crafts such as body packaging.
五金零件
氣泡膜墊底包裝線路板
Remarks:
The use of cardboard packaging must be ventilated cardboard, no oil surface.
Packaging is done by heating under high temperature, the temperature sensitive products are not suitable for use.
There is light, surface treatment products, in order to prevent is body film glue coating stick, need to use glue body film (board coated with sealing glue).
The height of the product is relatively high, with good tensile body film. Recommend the use of high-quality sand coating.
Model: TB390/FX3954
Heating mode: intermittent
Power supply: three-phase five wire system 50Hz 220V
Power: 8KW
Clip film mode: Manual
Packing speed: >80 (version /h)
Packing area: 390x540 (mm)
Packing height: less than 50mm
Outline dimension: 1520x600x1330mm
